Schüco Jansen Unlatched, non-rebating, single acting fire doors

The three original systems in the range are Economy 60 in 30-minute [E30] and 60-minute [E60] versions, Janisol 2 EI30 and Janisol C4 EI60. These are joined by the latest addition to the range, the Art 15 with ratings from E30 up to EW120. All the systems offer Sa smoke protection and are fully assessed to EN 1634 for both fire and smoke protection.

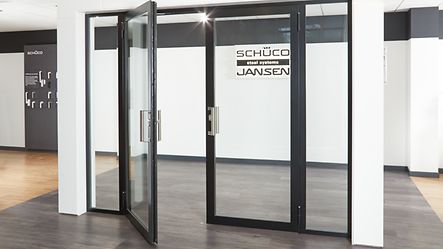

The Economy 60 door is a 60 mm system that is available with either 30-minute or 60-minute integrity-only protection against fire. Flush single and double-leaved doors, with optional side and top lights, also make it ideal for internal fire-rated partition walls.

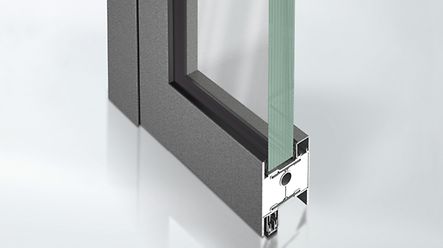

Both the Janisol door systems are thermally broken to ensure an excellent level of all-round insulation, an important consideration when sustainability and whole life costs are mandated as factors in the brief. Their design enables them to deliver protection against fire and smoke for 30 minutes in both Integrity and Insulation (Janisol 2 EI30) and 60 minutes Integrity and Insulation (Janisol C4 EI60). Janisol 2 is designed for single and double doors and partitions. Janisol 2 and Janisol C4 are elegant 60 mm and 70 mm deep systems perfectly suited for fire and smoke doors with fixed lights and are designed for single and double doors and partitions. They have a contemporary, light-weight appearance and double rebate seals. An intelligent fire-retardant filling gives 60 minutes’ integrity and insulation protection.

In addition, both the Janisol 2 and the Janisol C4 EI60 system offer concealed closers to provide a clean design line. The option of concealed hinges for Janisol C4 EI60 provides architects with the ultimate in visual aesthetics as well as performance in use. Where vision or light is not wanted the doors are available overclad with 2 mm steel sheet. Designed to integrate perfectly with Schüco Jansen glazed screens, these Schüco Jansen doors have hinges that have been tested through a million cycles, making them ideal for high-traffic areas in schools, hospitals, offices and public buildings.

The Art 15 is also designed for both single and double leaf configurations with a fire resistance from 30 minutes Integrity only [E30] up to 120 minutes Integrity and Radiation [EW120].  It features elegant slim-line profiles offering improved sightlines and offers the use of a concealed door closer, making it ideal for both commercial and residential applications.  The Art 15 also allows use of the Piet Boon glazing bead for designer aesthetics.

A comprehensive collection of fittings and accessories – including different glazing bead variants, a variety of hinge types and an individual choice of face-fixed door handles – allow all three systems to be customised to perfectly complement any location.
