Schüco Façade System SFC 85
Design façade for maximum transparency

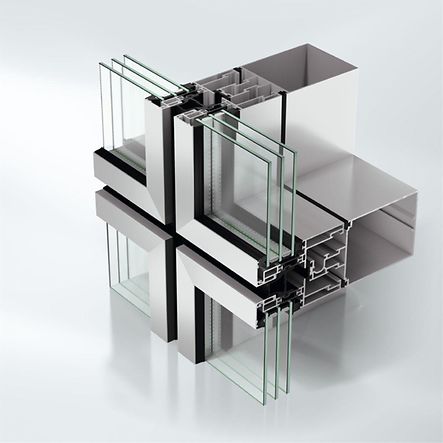

The Schüco SFC 85 (Stick Frame Construction) façade system is a type of all-glass façade with fixed fields flush-fitted in the façade and opening units that cannot be identified as insert units from the outside or the inside. The result: elegant design façades with maximum transparency and identical face widths for fixed fields and window vents.
The insert units completely integrated in the load-bearing structure can be implemented in particularly large fixed field or vent formats with heavy unit weights.
The tried-and-tested structural glazing façade with double and triple glazing has been approved in Europe by ETA-07-0120.
Planning benefit
- Fixed fields and opening units completely integrated in the load-bearing structure: not identifiable as an insert unit from outside or inside All insert units available with three different glazing options: structural glazing stepped insulating glass (type A), structural glazing standard insulating glass (type B), standard insulating glass with continuous glazing beads (type C)
- Opening units can be constructed as projected top-hung and parallel-opening windows with high vent weights, also in combination with concealed motor drive
- Large unit formats offer a high level of transparency
- Simple mounting of the fixed fields in the load-bearing structure ensures particularly efficient installation
