Corner crimping machines

Schüco Machine CC 400 M / CC 400 E

Schüco Machine CC 400 M / CC 400 E

  • Efficient crimping of the four corner joints for windows, doors and façade units made from continuous, mitred aluminium profiles.
  • Barrier-free insertion of a fitted frame or loose profile bars.
  • The automatic, simultaneous crimping of 4 corners enables fast and secure processes for frame joints.
  • Horizontal fabrication of profile frame
  • The in-house Schüco clamping and crimping system distributes the cutting tolerances evenly across all 4 corners of a frame.

SCHÜCO CC 400 M

  • One fixed crimping head, two easy-to-position crimping heads on tracks and one freely moveable crimping head on a steel work bench
  • Calibration of 2 crimping heads with digital display
  • Flexible crimping head which can be positioned using two lasers
  • Rapid adjustment for different profiles by means of a crank and a hand wheel
  • Increased freedom as there are no stop blocks
  • Profile wall of 2 mm
  • Thicker wall on request
  • Minimum distance of 31 mm between top and bottom knife
  • Maximum distance of 166 mm (without conversion); 213 mm with change-over of the crimping knives

SCHÜCO CC 400 E

  • Electronic positioning of both linear heads
  • Electronic positioning of the top crimping knives
  • Increased freedom as there are no stop blocks
  • Profile wall of 2 mm
  • Thicker wall on request

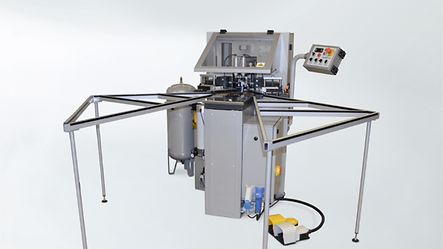

Schüco Machine CC 120 A

Schüco Machine CC 120 A

Corner crimping machine with adhesive injections.
This machine combines 3 tasks:

  • Crimping the frame
  • Punching the adhesive
  • Measured adhesive injections

The manually adjustable mechanical controllers for milling tool and pump make operating the machine simple.

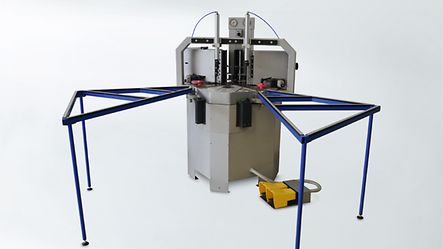

Schüco Machine CC 300

Schüco Machine CC 300

Corner crimping machine for extreme requirements:

  • Maximum crimping height: 300 mm
  • 5 crimping levels
  • Minimal internal size of frame: 270 x 270 mm

These features ensure machining of both small and large frames.

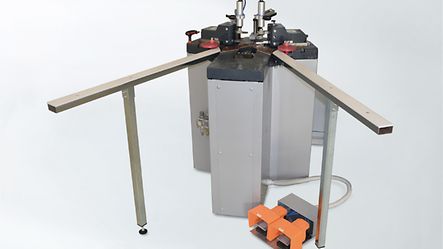

Schüco Machine EVM S

Schüco Machine EVM S

For efficient crimping of corner cleats in windows and doors made from aluminium profiles.

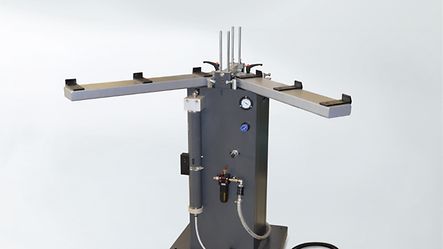

PGA

PGA

Mitre sealing machine for applying the mitre sealing compound (Art. No. 298 864) to aluminium mitre surfaces.

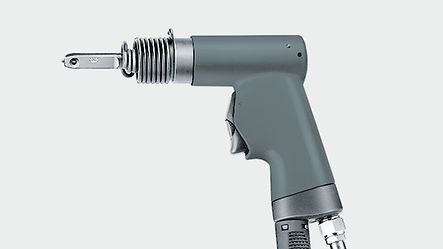

Pneumatic Nail Gun

Pneumatic Nail Gun

For driving the aluminium corner and T cleat nails into the clamped frames.

Profile Locking Bar Processor

Profile Locking Bar Processor LA 100

Profile Locking Bar Processor LA 100

Automatic locking bar processor for rapid calculation and fabrication of locking bars for SimplySmart fittings.
The locking bar is calculated automatically for individual opening types, vent sizes and individual resistance classes.
No time spent on entering data from the manual.

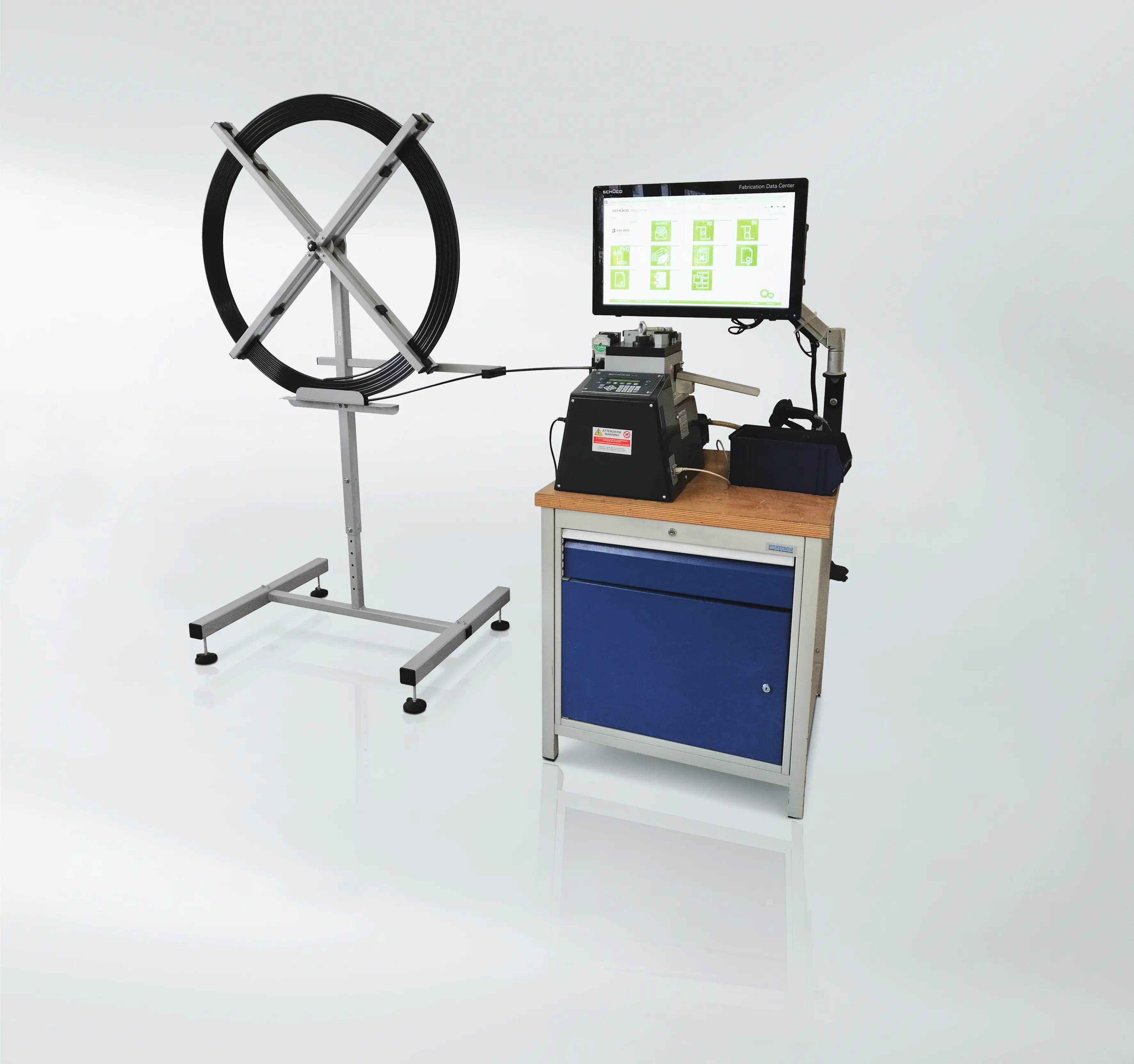

Profile Locking Bar Processor LA 10

Profile Locking Bar Processor LA 10

The new automatic profile locking bar machine is the small revolution for every window production. In combination with the Schüco Fabrication Data Center, processing the Schüco SimplySmart fitting is now more reliable, easier and faster.


The intelligent duo handles all process steps – from calculation to automatic punching and cutting to length of the locking bars. A wide range of opening types and vent sizes as well as various resistance classes are now possible without any problems. Thanks to the little helper with great effect.

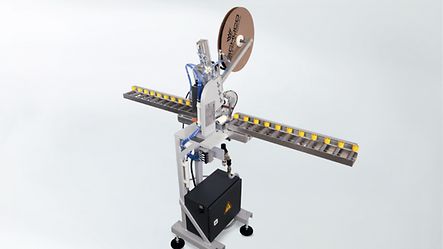

Glazing bead clip machine

Glazing Bead Clip Machine Schüco GC 100

Glazing Bead Clip Machine Schüco GC 100

For automatic insertion of the glazing bead clips.

  • No need for time-consuming, manual clipping of glazing bead clips.
  • Glazing bead clips are clipped on at the specified distances from one another.
