Schüco Folding Sliding System AS FD 75
Folding sliding systems and transparency don't go together? Yes, with a vent width of up to 1,500mm and a narrow face width of 90mm, the AS FD 75/90.HI sets new standards when it comes to transparency.
Can you spare 3 minutes? Watch now and discover the Schüco AS FD 75 folding sliding door.

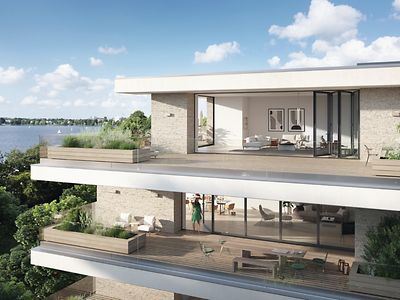

With extremely slim face widths and flush-fitted outer and vent frames, the Schüco AS FD 75 folding sliding system really stands out.
A comprehensive selection of opening and locking types makes individual designs possible with maximum planning freedom.
3 different threshold types, including a flat threshold with great rollover capacity, make the system adaptable to many installation situations.
An optional side-hung door enables quick passage, while an integrated magnetic retaining catch ensures secure opening and closing of the folding sliding unit.
The system now offers a higher level of security, meeting burglar resistance class RC 2.
The improved sealing concept with two continuous gasket levels offers greater watertightness and air permeability values for all opening types.
Fabrication benefits
- Corner and T-cleats can be screwed on, ensuring simple and quiet installation of the outer frame.
- Lateral adjustment profiles in the outer frame compensate for tolerances once installed.
- Extremely quiet operation of the vents is achieved through massive stainless steel tracks and stainless steel rollers.
- The system is easy to transport and takes up little space on the construction site, making building completion very efficient.
- A reduced number of insert profiles allows for easy assembly.
- Guide carriers are secured against becoming detached in the top outer frame.
- 2 profile widths selectable for sash frame profiles.
Gallery
Technical information
- Min. vent height
- 660 mm
- Max. vent height
- 3000 mm
- Min.-max. vent height
- 660...3000 mm
- Min. vent width
- 500 mm
- Max. vent width
- 1500 mm
- Min.-max. vent width
- 500...1500 mm
- Vent frame face width
- 41 mm
- Min. face width of interlocking section
- 90 mm
- Min. system basic depth
- 75 mm
- Min.-max. system basic depth
- 75...75 mm
- Uw value of window (≥)
- 1.1 W/(m²·K)
- Max. sound reduction index Rwp
- 47 dB(A)
- Watertightness
- E 750
- Burglar resistance
- Up to RC 2, PAS 24
- Operating type
- manual
- Max. vent weight
- 150 kg
- Min. face width
- 90 mm
- Max. glass/panel thickness
- 50 mm
- Uf value of frame (≥)
- 2,15 W/(m²·K)
- Total basic depth
- 75 mm
- Max. unit width
- 10500 mm
- Max. unit height
- 3108 mm
- Outer frame face width
- 71 mm
- Min. face width of mullion
- 90 mm
- Min.-max. face width of mullion
- 90...104 mm
- Min. face width of meeting stile
- 142 mm
- Min.-max. face width of meeting stile
- 142...171 mm
- Min.-max. glass/panel thickness
- 8...50 mm
- Threshold height
- < 12,5 mm, < 20 mm, > 20 mm
- Area of application
- Internal use, External use, Residential projects, Commercial projects, Accommodation facilities
- Shear bond
- No
- Meeting stile design
- Yes
- Number of vents
- 1, 2, 3, 4, 5, 6, 7
- Number of tracks
- Single track
- Track material
- Stainless steel
- Roller carriage material
- Aluminium, PVC-U, Stainless steel
- Surface finishes
- RAL, Powder, Anodised, Paint
- Fittings installation
- Barrel hinge
- Opening type
- Type 6/90°, Free configuration
- Proof of durability
- DIN EN 1191
- Corrosion protection class for fittings
- Class 4
- Air permeability
- Class 4
- Wind resistance deflection
- Klasse B5
- Wind load resistance
- Class C3, Class B5
- Drainage levels
- 4
- Security glazing
- Yes
- CE marking
- Yes
- Cradle2Cradle
- Yes
- Colour-independent
- Yes
