Schüco Window System AW RO 50

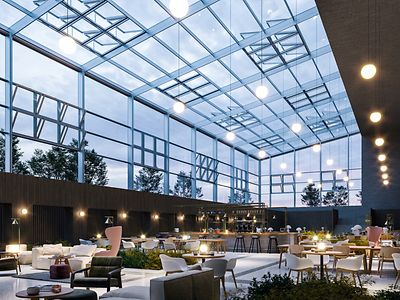

The window offering the best values for skylights – maximum vent sizes and weights as well as maximum efficiency in terms of energy and fabrication.
AW RO 50 not only has many of the best technical values, such as vent dimensions up to 4.5 m² and a minimum heat transfer coefficient of 1.2 W/(m²K), but it also impresses with its high degree of flexibility and versatile applications. Different outer frame and glazing bead options offer a great deal of design freedom and allow for flexible use in various skylight constructions, no matter whether this involves a FWS mullion/transom skylight, AOC add-on construction or CMC 50 conservatory system.
Fabrication benefits
- Highly reliable processes and high fabrication quality due to improved corner cleat contours
- Two outer frame options can be used for all types of sub-structures (Schüco FWS 50/60, Schüco AOC, Schüco CMC 50)
- Installation-friendly Schüco SimplySmart locking mechanism for vent sizes > 2.73 m²
- Glazing beads can be installed as individual bar installation or in frame fabrication
- Concealed glazing bead screw connection using simple clip profile
- High level of usage of the same parts thanks to components from the Schüco AWS platform, Schüco AWS 57 RO and the tried-and-tested Schüco SimplySmart locking mechanism
Gallery
Technical information
- Uf value of frame (≥)
- 1.2 W/(m²·K)
- Max. glass/panel thickness
- 74 mm
- Air permeability
- Class 4
- Watertightness
- E 1500
- Burglar resistance
- Up to RC 2
- Max. vent width
- 3000 mm
- Max. vent height
- 3000 mm
- Max. vent weight
- 250 kg
- Face width, outside
- 84 mm
- Face width, inside
- 86 mm
- Min. glass/panel thickness
- 22 mm
- Min.-max. glass/panel thickness
- 22...74 mm
- Installation angle
- 2° - 75° °
- Skylight construction, min. vert. incline
- 0 °
- Skylight construction, max. vert. incline
- 0 °
- Skylight construction, min.-max. vert. incline
- 0...0 °
- SHEVS function
- Yes
- Wind load resistance
- Class C5 / B5
- Building authority approval
- No
Documentation

Schüco Fenster AW RO 50
View onlineTest documents
Document type | Test type | Result | Classification | Document no. / Download |
---|---|---|---|---|
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
|
4 C5 / B5 E1500 |
View online Download |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
|
4 C5 / B5 E1500 |
View online Download |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
|
4 C5 / B5 E1500 |
View online Download |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
|
4 C5 / B5 E1500 |
View online Download |
Klassifizierungsbericht | Burglar resistance | RC 2 / RC 2N | View online Download | |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
Klasse: 4 Klasse: C5 / B5 Kasse: E1500 |
|
View online Download |
Klassifizierungsbericht | Burglar resistance | RC 2 / RC 2N | View online Download | |
Klassifizierungsbericht | Burglar resistance | RC 2 / RC 2N | View online Download | |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
Klasse: 4 Klasse: C5 / B5 Kasse: E1500 |
|
View online Download |
Klassifizierungsbericht |
Luftdurchlässigkeit EN Windwiderstandsfähigkeit Schlagregendichtheit |
|
4 C5 / B5 E1500 |
View online Download |
