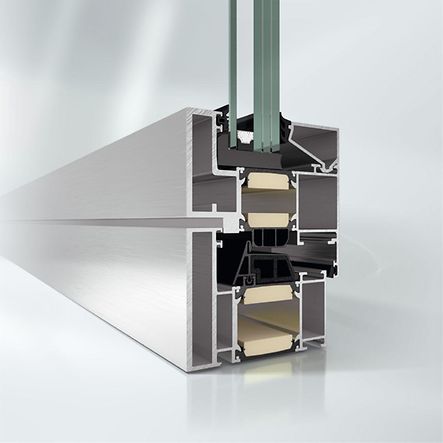

Schüco Window System AWS 90 BR
Combined burglar and bullet resistance – perfect for large commercial projects
Be it a bank, government building or embassy – large commercial projects in particular place stringent security requirements on windows. The Schüco AWS 90 BR (Bullet-Resistant) window system offers individually tailored burglar and bullet-resistant solutions for applications in a wide variety of building concepts: in addition to turn/tilt, tilt-before-turn and side-hung windows, fixed glazing can also be constructed.
Two crucial planning benefits of the system: burglar-resistant and bullet-resistant properties can be combined perfectly. Thanks to uniform profile face widths, the aluminium constructions are visually indistinguishable from standard Schüco window systems and can therefore be integrated harmoniously into a building's overall appearance, in line with the Schüco maxim that “increased protection doesn't have to be visible”.
Fabrication benefits
- Based on: standard Schüco AWS 90.SI+ window system
- Standard Schüco system benefits are retained, e.g. weathertightness, sound reduction and thermal insulation
- No profile inserts required for burglar resistance
- Simple enhancement for bullet resistance using aluminium inserts in the outer chambers
- Combination with burglar and bullet-resistant Schüco façade systems
Gallery
Technical information
- Min. face width
- 127 mm
- Min.-max. glass/panel thickness
- 17...56 mm
- Burglar resistance
- Up to RC 4
- Bullet resistance
- Up to FB 4
- Air permeability
- Class 4
- Watertightness
- E 750
- Wind load resistance
- C5/B5
- Max. sound reduction index Rwp
- 44 dB(A)
- Max. glass/panel thickness
- 56 mm
- Area of application
- External use, Residential projects, Commercial projects
- Concealed fittings system
- Yes
- Mechanical strength
- EN 14351, Class 4, EN 13115
- Uf value of frame (≥)
- 1.64 W/(m²·K)
- Security system
- Yes
Documentation
Test documents
| Document type | Test type | Result | Classification | Document no. / Download |
|---|---|---|---|---|
| Test report | Beschuß | FB4 NS | View online Download (pdf, 165.5 KB) | |
| Classification report | Schallmessung | 44 (-2;-4) | View online Download (pdf, 1.5 MB) | |
| Test report | Beschuß | FB4 NS | View online Download (pdf, 167.6 KB) | |
| Test report | Beschuß | FB4 NS | View online Download (pdf, 166.5 KB) | |
| Test report | Beschuß | FB4 S | View online Download (pdf, 165.6 KB) | |
| Test report | Beschuß | FB4 S | View online Download (pdf, 160.8 KB) | |
| Classification report | Schallmessung | 42 (-2;-4) | View online Download (pdf, 1.5 MB) | |
| Gutachten |
Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit EN Bedienungskraft Dauerlaufprüfung Pendelschlagversuch |
|
C5 /B5 9A / E 750 4 1 3 / 2 2 |
View online Download (pdf, 2.7 MB) |
| Gutachten |
Windwiderstandsfähigkeit Schlagregendichtheit Luftdurchlässigkeit EN Bedienungskraft Dauerlaufprüfung Pendelschlagversuch |
|
C5 /B5 9A / E 750 4 1 3 / 2 2 |
View online Download (pdf, 1.3 MB) |
| Kurzbericht | Burglar resistance | WK 4 | View online Download |
